Oil Press Machine 6YL-195
The 6YL-195 mustard oil expeller machine is a cold press machine designed for continuous operation, capable of extracting oil from a wide range of seeds.
Brochure
Overview
Gallery
Features
Material Solution
Specifications
Projects
Information Request
Overview
6YL-195 cold press machine can continuously working and squeeze various of oil seed materials, suitable for various of raw materials like mustard oil, sesame, avocado, sunflowers, almonds, peanuts, soybean, walnuts, tea-seeds, etc. After the extraction process, the oil is filtered using a vacuum filter to ensure high-quality, edible oil.
Gallery
Main Structure

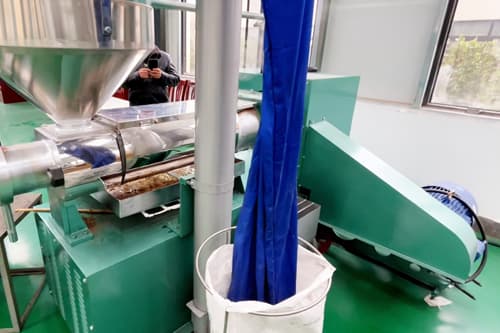

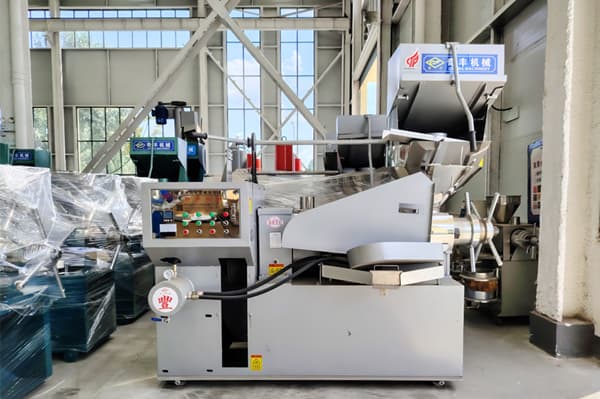

The mustard oil expeller machine includes a combined frame, an electronic control system, a main motor, a vacuum oil filtration system, and a stainless steel hopper shield.
The system also features an automatic intelligent filtration system and automatic lifters for both oil cakes and oil seeds.
Features
The machine is easy to operate and requires only one person to run it effectively.
All core components undergo a strict heat treatment process.

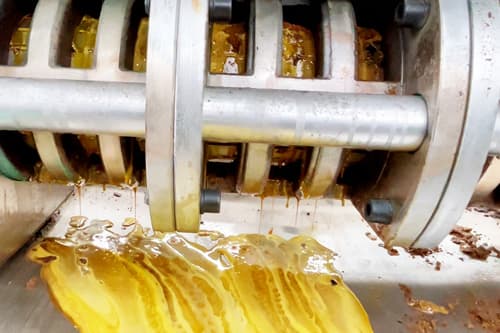

The oil passes through a vacuum cylinder and undergoes filtration, ensuring effective separation of oil residue.
Material Solution
Technical Specifications
| Model | 6YL-195 |
| Moto Power | 22KW |
| Process Capacity | 250KG-300KG/H |
| Size（L*W*H ） | 2600*1890*1850mm |
| Weight | 1600KG |
| Vacuum Power | 2.2KW |
| Pacakge | Wooden pallet with PE film |
| Voltage | 380v,Three-Phase;50HZ |
| Rotating Speed | 110~120 RPM |
| Structure Material | Carbon Steel |
