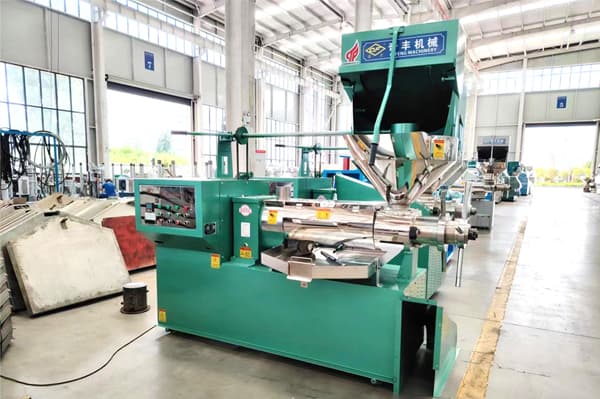

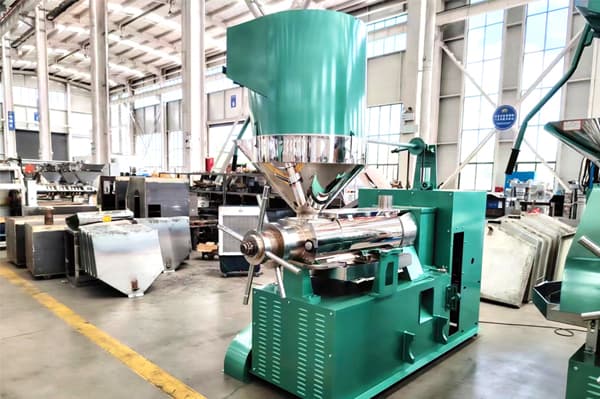

Oil Press Machine 6YL-215
The 6YL-215 Screw Oil Press is an upgraded model based on the positive market feedback of the 6YL-170 oil press. It has been further modified to meet the diverse needs of different customer groups and oil extraction processes, expanding its application range.
Brochure
Overview
Gallery
Features
Material Solution
Specifications
Projects
Information Request
Overview

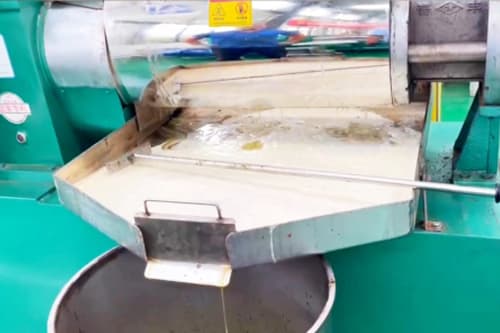

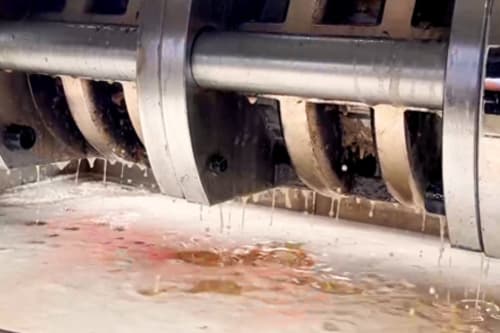

This machine is based on the continuous movement of the screw within the pressing chamber and the reduction in chamber volume, which creates increasing pressure, forcing the oil from the oil seeds. The oil then flows out through the gaps in the discharge bars into the oil receiving pan, where it is heated to the required temperature. After meeting the filtration requirements, the oil undergoes further deep filtration before being packaged in containers.

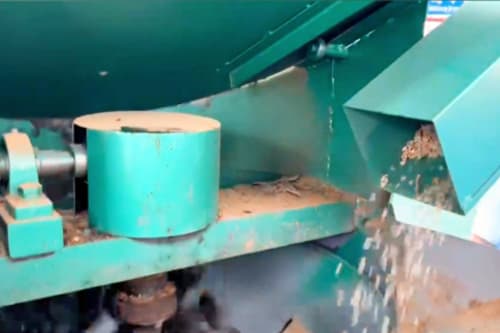

This machine consists of several parts, including the electrical control box, feed hopper, gearbox, pressing cage, screw press, discharge bar, cake outlet, shaft head, frame, oil receiving pan, and optional or self-provided motor and oil filter system.
Features
The motor and oil filter system can be customized based on actual requirements, offering more flexibility.
Made of high-quality carbon steel, it is durable, wear-resistant, easy to clean, and suitable for continuous oil extraction.
Save labor and energy. With the same oil production, 60% of electricity and 40% of labor can be saved.
Material Solution
Technical Specifications
| Model | 6YL-215 |
| Moto Power | 27KW-4--30KW-4 |
| Process Capacity | 6T/24H-12T/24H |
| Size（L*W*H） | 2700*2100*2200MM |
| Weight | 1580KG |
| Voltage | 380v, Three-Phase; 50HZ |
